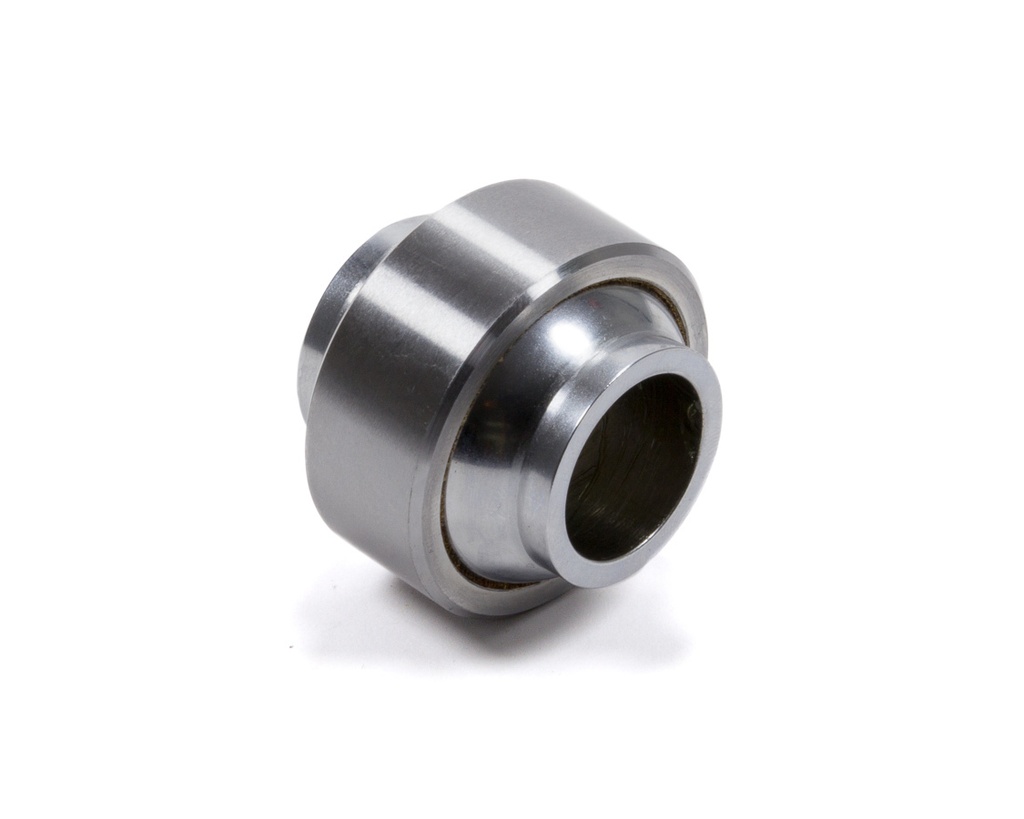

Aurora - Mono Ball Bearing PTFE 3/4ID x 1.5625OD
High misalignment spherical bearing with PTFE liner, 0.750 in ID, 1.563 in OD, and 1.280 in thickness.
Specification
Brand
Aurora
Item Number
HAB-12T
Inner Diameter
0.750 in
Outer Diameter
1.563 in
Ball Width
1.280 in
Race Width
0.620 in
Misalignment Angle
18 degrees
Radial Static Load Capacity
53,707 lbs
Ball Material
Heat-treated alloy steel, hard chrome plated
Race Material
17-4 PH stainless steel, heat-treated
Liner
PTFE (AT 3200), permanently bonded to race inside diameter
Weight
0.33 lbs
Description
The Aurora HAB-12T is a high misalignment spherical bearing designed for demanding applications. Featuring a 0.750-inch inner diameter and a 1.563-inch outer diameter, this bearing is PTFE lined for self-lubrication and durability. Constructed with a heat-treated alloy steel ball and a 17-4 PH stainless steel race, it offers a misalignment angle of 18 degrees and a radial static load capacity of 53,707 lbs. Ideal for applications requiring high load capacity and misalignment accommodation.
Disclaimer
Product specifications are subject to change without notice. Please verify dimensions and material compatibility before purchase.
